“Piccolo” Trochanteric (PF) Nail
PF Short Nail

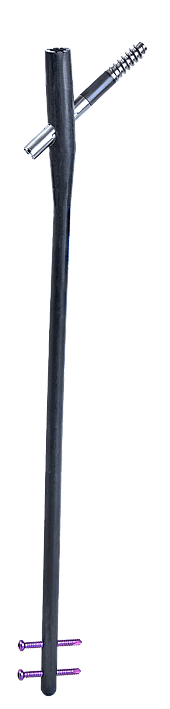

PF Long Nail
• Made of continuous carbon fibers reinforced polymer
• The nail have a 5° proximal anteversion

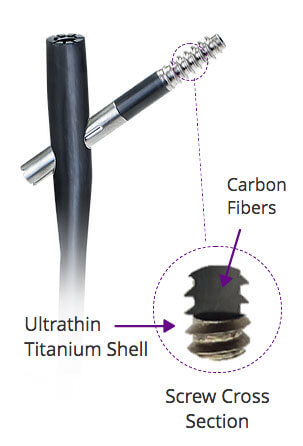

• Ultra-thin titanium shell coating of the lag screw
• The nail cap is made of composite material and is radiolucent
• Radiopaque markers around the drill holes and along the nails’ length axis facilitate positioning and drilling
• Lag Screw and the long Nail are cannulated
• CarboFix Piccolo Proximal Nail is FDA cleared and CE marked
Features
• Radiolucent: Superior fracture imaging
• Advantageous in pathological fractures
• No artifacts in CT & MRI due to the nail
• Improved modulus of elasticity
• Unparalleled fatigue strength
Available sizes
| Implant Type | Proximal End Diameter (mm) | Shaft Diameter (mm) | Length (mm) | Orientation |
| Nail-Short | Ø17.0 | Ø11.0 | 180 | Bi-lateral |
| Nail-Long | Ø17.0 | Ø11.0 | 320, 340, 360, 380, 400, 420, 440 | Left / Right |
| Implant Type | Diameter (mm) | Length (mm) |
| Lag Screw | Ø10.4 | 80, 85, 90, 95, 100, 105, 110 |
| Distal Screw | Ø5.0 | 30 – 60 @ 2.5mm increments 65 – 85 @ 5mm increments |
• Nail Cap: 0, 5, 10 mm
* CarboFix nails & plates are supplied sterile
** CarboFix nails & plates are also known as Piccolo Composite® nails & plates
CarboFix - Technology & Features
Technology & Features
CarboFix nails, plates, and pedicle screws are made of continuous carbon fibers reinforced polymer.
The Polymer (PEEK) adhere the fibers together.
The continuous carbon fibers are layered in a unidirectional, longitudinal orientation, as well as in helical / diagonal orientation.
The material makes the CarboFix implants radiolucent, which is beneficial during surgery and follow up.
This composite material enables MRI & CT scan with no, or minimal artifacts for better soft tissue visualization. The material enables radiation therapy with no backscatters.
CarboFix implants portfolio includes, among others:
• Intramedullary nails for Humerus, Tibia & Femur, as well as Ankle Arthrodesis nail
• Plates for Distal Radius, Proximal Humerus & Distal Fibula and others
• Pedicle Screws & Rods
Carbon Fibers Orientation in the CarboFix Nails
CarboFix - Radiolucency
Radiolucency
• CarboFix implants are radiolucent, offering improved fracture and tissue imaging intra-op & post-op.
• The fracture line can be seen clearly through the implant which does not disrupt the view.
Nails
Plates
• The Distal Radius & Proximal Humerus plates Targeting Guides are radiolucent as well: better visualization in AP/lateral intra-operatively.
Radiolucent Targeting Guide attached to the Proximal Humeral Plate
Intra-OP lateral view of the Proximal Humeral Plate with attached Targeting Guide
Radiopaque markers
• CarboFix “Piccolo” implants are marked with radiopaque markers for easy positioning and follow- up.
The nail markers
There are several markers, embedded in the nail, which enable visualization under fluoroscopy:
Marker along the longitudinal axis
Marker on the proximal end
Markers located of both sides of each hole
Targeting the nail distal holes
• Around each distal hole there are radiopaque mini rods embedded in the nail.
• Upon proper positioning the two markers on each side of the hole are merged into a single dot.
Incorrect alignment of the distal hole markers
Correct alignment of the distal hole markers
CarboFix nails distal markers video
The plate marker
• The plate contour is marked with a circumferential radiopaque marker.
Distal Radius Plate circumference radiopaque marker
Distal Fibula Plate circumference radiopaque marker
CarboFix - MRI, CT & Radiation Therapy
MRI, CT & Radiation Therapy
• The CarboFix implants allow CT & MRI scans with no/minimal artifacts caused by the carbon fibers implant.
• Clear imaging of the soft tissue surrounding the bone is advantageous in pathological cases.
MRI of a Humeral pathological fracture fixated by a CarboFix nail
Conventional metal implant: Massive artifacts
MRI of a CarboFix Pedicle Screws: No artifacts
MRI of a Metal Pedicle Screws: Massive artifacts
Pathological long bone Cases
Advantageous in pathologies
• Carbon fiber implants have radiation properties similar to biological tissues:
– Enables precise pre-radiation CT planning
– Minimal dose perturbation effects compared to metal implants:
– No backscattering or attenuation
CarboFix - Biomechanical properties
Biomechanical properties
Improved modulus of elasticity
The modulus of elasticity of the composite material is close to that of cortical bone. This might lower the risk for stress risers and secondary fractures, as well as to contribute to early fracture healing.
Modulus of Elasticity
Unparalleled fatigue strength
In comparative fatigue experiments of Ø8.5mm nails, a Titanium rod failed after 40,000 cycles, a Stainless Steel rod failed after 440,000 cycles, and the CarboFix nail did not fail even after 4,000,000 cycles.
Nails Fatigue Strength
Plates Fatigue Strength
CarboClear Pedicle Screws System: Unparalleld Fatigue Strength
CarboFix plates: superior bending strength
Comparison bending strength test of Titanium, Stainless Steel and CarboFix “Piccolo” Diaphyseal plates was performed. CarboFix “Piccolo” plates were shown to have a higher bending strength than metal plates.
Superior Bending Strength
